Potato Gatling Gun

Posted on Jun 29 2009 - 10:49am by Lisa C.

Potato Gatling Machine Gun

The DeRose family (apparently much cooler than mine) have made a Potato Gatling Gun for entry in this years Maker Faire.  Read on for details and a video of this potato machine gun.



Potato Gatling Gun website.

The Ignition system

For the test firing we manually ignited each barrel using a barbeque lighter. We’re now in the process of completing the automatic ignition system.

Our automatic ignition system uses a step-up transformer over the rotating barrels and spark plugs in the end-caps of each barrel. Contacts on each barrel cause the transformer to be energized as they move into firing position.

The following image shows a schematic of the system.

Our first attempt to lay out contacts is

shown at right. The high voltage contacts

are the long ones to the left, and the low voltage

contact is one the right. This design ensures that

the high voltage side of the circuit is connected

before the circuit is energize by the low

voltage side, thereby preventing arcing outside

the barrel.







Below is a closeup showing the final design of the contacts along with the transformer mounted above the barrels. We ended up having to separate the high voltage contacts on either side with the low voltage contact in the middle to prevent arcing between them.



The control Box



We needed a way to spin up the barrels and fire the gun without being right next to it (in case it exploded), so we came up with the idea of having a small control box so we could control everything while standing back from the gun. Since we are using a plug-in drill to rotate the barrels, we hooked up a lightbulb dimmer switch to the drill so we could adjust the speed of the barrels. There is also a safety switch and fire button on the box which when held down energizes the transformer, thus firing the cannon.

As seen in the picture above, the white cord marked “power” supplies power to both the drill and the transformer. Each lead from the power cord is split, and half goes to the dimmer switch marked “barrel speed”, and then to the outlet marked “Barrel”, and the other half goes to the “safety” switch, the “FIRE” button, and the outlet marked “trans”. The schematic is shown below.

First, you select the speed of the barrels by moving the dimmer switch, then you arm it by flipping the safety of, and the FIRE.

Power in

To drill (barrels)

To Transformer

Safety Switch         Fire button





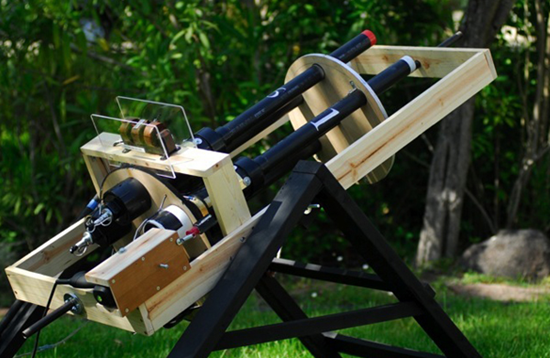

The image below is was taken from behind the gun, showing the spark plugs and the drill mount used to spin the barrels.

We’ve experimented with a variety of fuels as shown here.  We found that hair spray and Brut could stay in the barrel for at least five minutes before firing. Axe and Static Guard, on the other hand, condense within about a minute, and can’t be ignited after that.



[Via]
