Helix Folding Bike

Posted on Mar 31 2015 - 11:04am by Russ

helix-folding-bicycle

Folding bikes have been around for quite some time. Some are better than others, but most tend to sacrifice a few things over their standard bike cousins. Folders tend to have one if not all of these issues -they are heavier, have less gearing options, tiny tires, complicated folding mechanisms, and flexing frames. Not all, just most.

A group of Canadians are out to change that with the Helix Folding Bike ($1,199 to $1,499).  This isn’t your average folding bike. It weighs just 21lbs, is made of titanium, and is currently the smallest folding bike int he world. Read on for details.


Helix Folding Bike

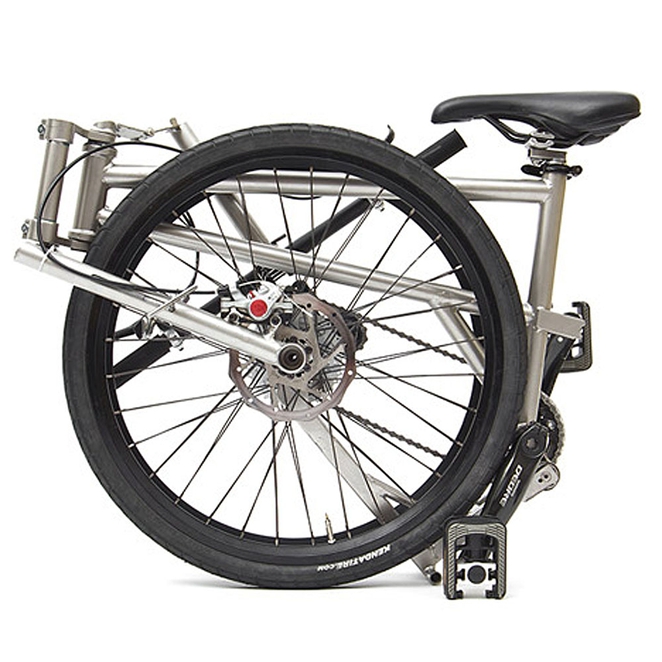

Smaller - Helix was designed from the ground up to be the smallest and most compact folding bike in the world. Helix folds down to the size of its wheels.

Lighter - Helix was designed to go everywhere, whether it’s the subway, the trunk of your car or a suitcase; it will be lifted often, so it must be lightweight.

Safer - Our patent pending spring loaded locking mechanisms pass through the fork and steerer tubes to create a safer lock. There is a secondary safety in place. The design is inherently safe.

Easier to use - The combination of side-by-side folding and our patent pending helical hinges allow Helix to be folded with ease. Once folded, it can be rolled on its own wheels and has an integrated stand for when you stop.



Frame & Fork 3Al-2.5V CWSR titanium
Headset TBA
Rear Derailleur 9 Speed
Shifter 9 Speed Trigger
Cables Internally routed
Crankset TBA
Stem TBA
Saddle TBA
Brakes Disc (160mm)
Wheels TBA
Tires 24″ x 1.5″ (ETRTO 40-507)
Approximate Weight 21 lbs (9.5 kg)
Folded Dimensions 23″ x 25″ x 9″
Maximum Weight Limit 250 lbs (113 kg)
Kickstarter Pre-order Price $1199 USD (Regular $1499)



Thanks for the tip MH.
