Disney’s One-Legged Hopping Robot

Posted on Oct 6 2016 - 10:38am by Steve M

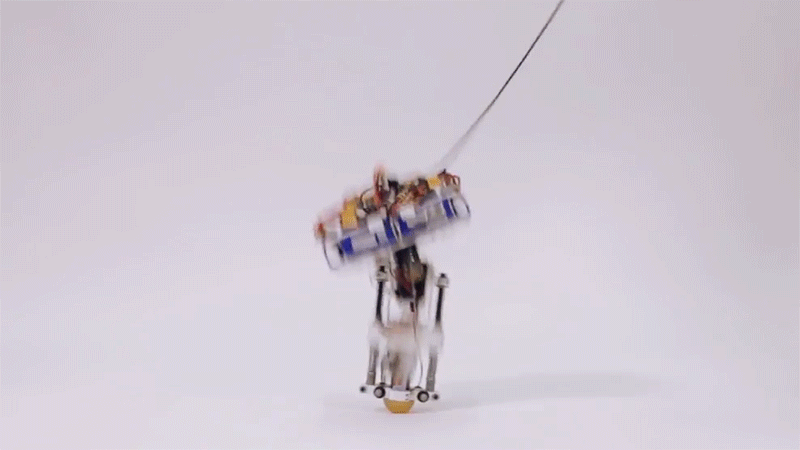

disney-tigger-robot

Who knows what Disney has up their sleeve with this one-legged bouncing robot. Clearly it is Tigger, Winnie the Pooh’s pal, but only time will tell how they will use it.

Current and previous single-legged hopping robots are energetically tethered and lack portability. Here, we present the design and control of an untethered, energetically autonomous single-legged hopping robot. The thrust-producing mechanism of the robot’s leg is an actuated prismatic joint, called a linear elastic actuator in parallel (LEAP). The LEAP mechanism comprises a voice coil actuator in parallel with two compression springs, which gives our robot passive compliance. An actuated gimbal hip joint is realized by two standard servomotors. To control the robot, we adapt Raibert’s hopping controller, and find we can maintain balance roughly in place for up to approx. 7 seconds (19 hops) while continuously hopping.



[via]
